Memory Module Tester & Rack Socket

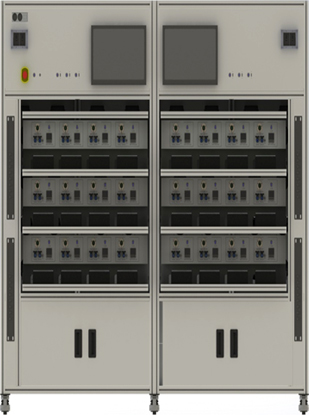

Memory Module TC -Rack
| Item | Description | Comment |
|---|---|---|
| Dimension | 1600(W) x 750(D) x 2110(H) | millimeter |
| Type | 3 column 2Row | |
| electric power | 5000W x 6 | Including Board 6EA |
| Weight | 800 Kg | |
| Temperature Range | +5 ℃ ~ +85 ℃ | R-Dimm Test |
| control method | Peltier @PCW cooling | |
| Temperature tolerance | ±3℃ | |
| Cooling method | PCW(Process Cooling Water) | Over 6Liters/Minute |
| Target Board | Server Class Main Board | Testing 6 main Boards at the same time |
| Target Dimm | R-DIMM (12 slot) | |
| SYSTEM configuration | HOST PC, Monitor, HDD 1T, Trackball keyboard, Barcode SCANNER | |
| Temperature Control | Within 6 minutes from +25 degrees to +85 degrees Within 10 minutes from +25 degrees to +5 degrees |
|
| Other functions | Temperature control software, Water Leak Check System |

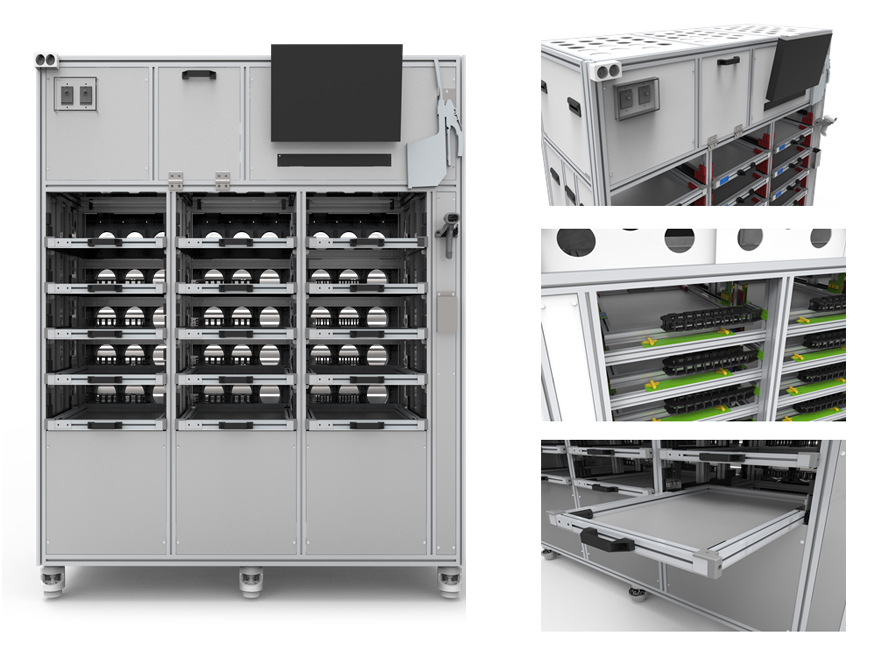

Memory Module TC -Rack

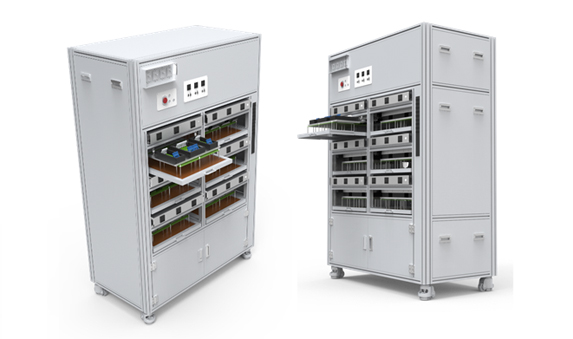

Room Rack

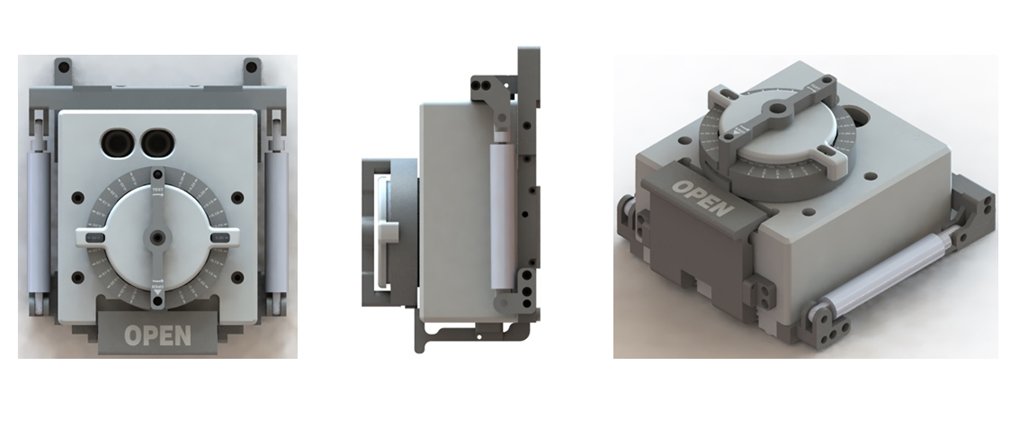

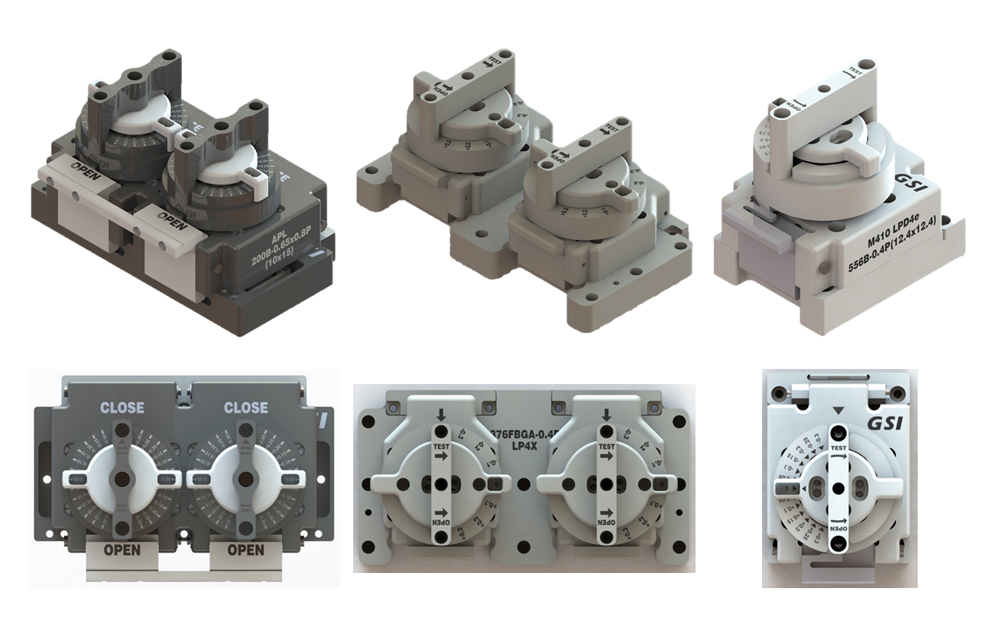

Socket Housing (200B, 376B, 556B)

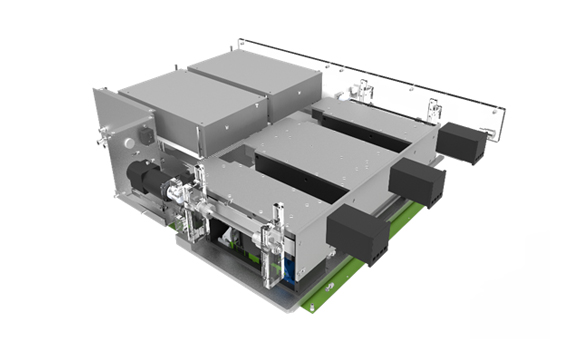

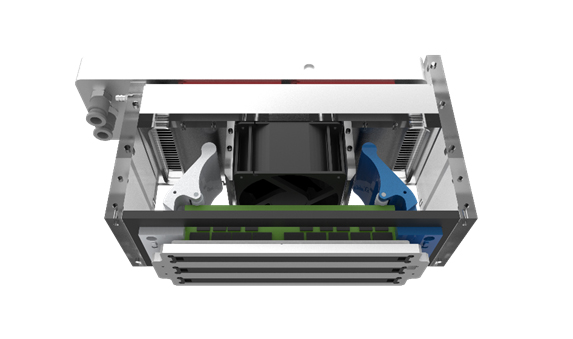

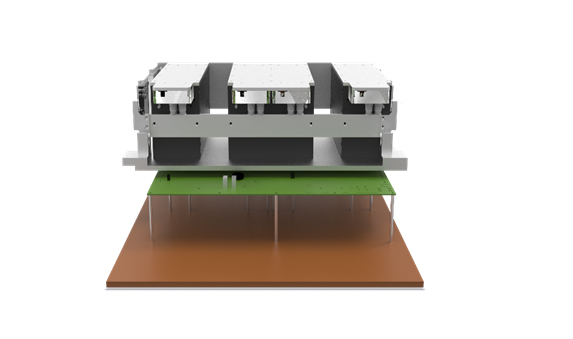

TC Housing

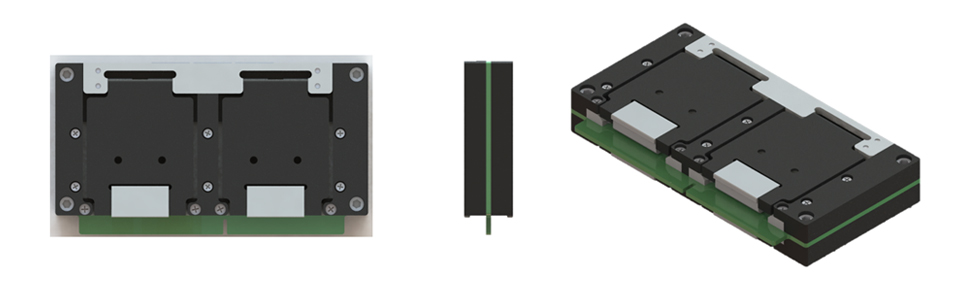

CAM JIG (U-DIMM)

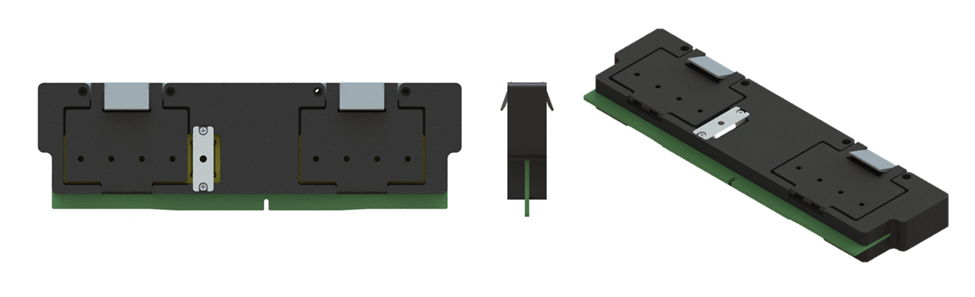

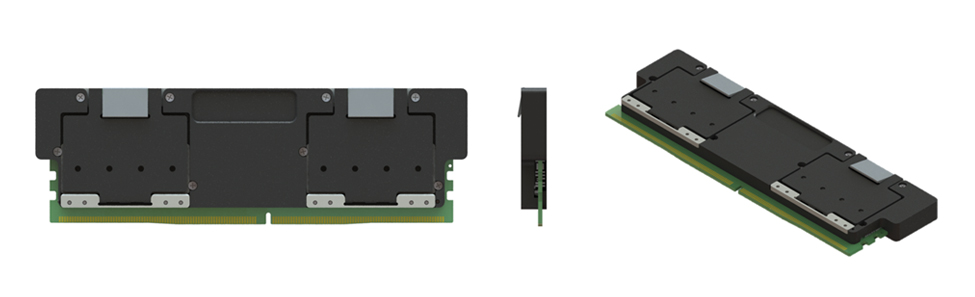

CAM JIG (R-DIMM)
CAM JIG (SO-DIMM)
